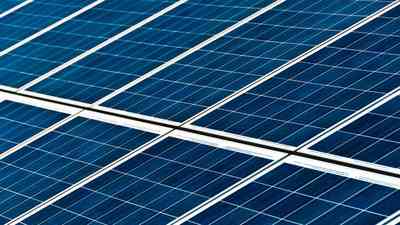

Solar Panels

We have seen in previous topic about how solar cells convert light energy into electrical energy. In this topic, we will discuss how we use these solar cells to design our solar PV system.

We connect solar cells in series to get desired current and voltage rating for panels. As all solar cells are connected in series, voltage will add and current will same as individual current rating of a solar cell. Different solar panels provide different power, current, voltage ratings.

Solar Panel Data Sheet

A solar panel datasheet, also known as a technical specification sheet, is a document that provides detailed information about a specific solar panel model. It typically includes information about the solar panel's performance, rating, electrical characteristics, environmental ratings, and mechanical specifications.

Information on the datasheet may vary depending on the manufacturer and the specific model of the solar panel. Data sheet freely available on manufacturer’s website.

STC – Standard Test Conditions

STC, or "Standard Test Conditions," is a set of conditions used to measure the performance of solar panels and systems.

These conditions include:

• Solar irradiance of 1000 watts per square meter
• Cell temperature of 25 degrees Celsius (77 degrees Fahrenheit)
• AM 1.5G spectrum

Under these conditions, a solar panel's output is measured in watts (W) and its efficiency is measured in percentage.

STC ratings are used as a benchmark to compare the performance of different solar panels and systems. The higher the STC rating, the more energy a panel can produce under standard test conditions. However, it's important to note that actual performance will vary depending on factors such as location, weather, and shading.

It's important to note that the STC rating is a laboratory measurement, actual performance in the field will be affected by factors such as weather, shading, temperature, and other factors, which will cause a decrease in the output power compared to the STC rating.

Here are some of the key elements that are typically included in a solar panel datasheet:

Efficiency

The efficiency of a solar panel is a measure how much sunlight solar panels can convert into electricity. It is typically expressed as a percentage and can range from around 10% to 22% for commercial solar panels.

The efficiency of a solar panel depends on several factors such as type of solar cells used, the quality of the materials, manufacturing process. Monocrystalline solar cells tend to have the highest efficiency, followed by polycrystalline cells, and thin-film cells typically have the lowest efficiency.

The efficiency of a solar panel also affects the size of the panel required to generate a certain amount of electricity. A higher efficiency panel will require less space to generate the same amount of power as a lower efficiency panel.

Peak Power

Rated power is the power capacity of a solar panel. It is maximum power that solar panel can generate at STC.

The power rating of a solar panel, also known as its peak power or maximum power output, is a measure of the maximum amount of electricity that the panel can produce, typically measured in watts (W). It is usually measured at Standard Test Conditions (STC).

Nominal Voltage

Nominal voltage in solar panels refers to the voltage that the panel is designed to produce under standard test conditions. It is typically expressed in volts (V) and is determined by the number of solar cells connected in series within the panel. The nominal voltage of a solar panel is important because it helps to determine the appropriate system design and component selection, including the inverter and wiring. However, it's important to note that the actual voltage output of a solar panel can vary based on factors such as temperature, shading, and orientation.

Nominal Current

Nominal current in a solar panel refers to the maximum rated current that the panel can produce under standard test conditions (STC).

The nominal current is an important parameter to consider when selecting a solar panel because it determines the maximum amount of current that the panel can deliver to a load. It is typically measured in amperes (A) and is listed in the panel's specifications.

However, it is important to note that the actual current output of a solar panel can vary depending on the operating conditions, such as the level of sunlight, the angle of the sun, and the temperature of the panel.

Open Circuit Voltage (Voc)

Open circuit means a circuit is broken and no current flow through circuit.

A voltage measure across two terminals of solar panels under open circuit condition. No current flows under open circuit condition i.e., current is zero.

Short Circuit Current (Isc)

Short circuit means two terminals of solar panel are shorted (connected together) so current flows freely.

Usually, this happens due to fault in a circuit. Voltage is zero under short circuit condition.

Under normal conditions during safe operation of solar system, solar panels generate rated power as per solar radiation intensity. But, Voc, Isc consider when fault occurs in the solar system.

IV Curve (Performance Characteristics)

IV Curve (Performance Characteristics) gives us information about solar panel performance. IV curve also called as current-voltage curve.

An IV (current-voltage) curve is a graph that shows the relationship between the current and voltage produced by a solar panel under different levels of illumination (solar radiations).

IV curve shows current and voltage graph for different irradiance values. With help of IV curve, we can find maximum power that solar panel can generate. It is used to evaluate the performance and efficiency of the solar panel.

Performance Warranty

Performance Warranty of solar shows degradation in power generation over years. Typically, solar panels design to generate energy for more than 25 years. But it doesn’t mean that solar panels generate same energy for every year. We see some degradation every year in energy generation. Manufacturer shows degradation over 25 years using performance warranty.

Manufacturer of solar panel guarantees at least 80% of its original power output after 10 years and at least 80% after 25 years. If the panel's power output drops below 80% within the 25-year warranty period, the manufacturer would be responsible for repairing or replacing the panel.

A performance warranty for a solar panel is a guarantee from the manufacturer that the panel will perform at a certain level over a specified period of time. The performance warranty typically guarantees a minimum power output, usually expressed as a percentage of the panel's original power output, over the warranty period.

Conclusion

solar panels are a highly efficient and renewable energy source that can provide significant benefits for both residential and commercial applications. When selecting a solar panel, it is important to consider the various parameters listed on the datasheet, including power output, voltage, current, efficiency, and IV curve. By understanding these parameters, individuals can select the most suitable solar panel for their specific needs and maximize the benefits of this renewable energy technology.
